HD Conference Camera PV603U2

Full HD 3X 1080P60/50

    KEY FEATURES

    ●Effective Pixels: 1/2.8" high quality HD CMOS, 1080P 2.1 Megapixels
    ●Zoom: 3X Optical Zoom f=2.5~8mm
    ●Video Out: USB2.0
    ●255 Preset Positions
    ●Support SONY VISCA, PELCO P/D
    ●IR Remote Control, RS232, IR Transparent Transmission
    ●Horizontal Angle: ±170°; Vertical Angle: -30° to +90° degrees
    ●Adopt 2D and 3D DNR Motion Estimation Algorithm, Low Noise CMOS Sensor
    ●Adopt Quiet Motor, Servo Algorithm for PTZ Control, Precise location(±0.01°)
    ●IR Remote Control Camera OSD Menu
    ●Horizontal Speed: 0.1-100°/s; Vertical Speed: 0.1-60°/s
    ●1080P30/25, 720P30/25 Multiple Video Formats Output
    ●Preset Calling Speed: 100°/s; Vertical Speed: 60°/sy
    ●Widely Been Used in Video Conference System, Remote Education, Telemedicine, Church, Courts, Media Centers.
    ●Enter/Exit Menu through IR Remote
    ●340°Horizontal Angle; 120° Vertical Angle
    ●IR Remote Control,RS-232C Control,HDBaseT Control
    ●VISCA, PELCO P/D Protocol
    ●IR Transparent Transmission,Able to Receive the Video Conference Terminal‘s IR Control Signal
    ●Firmware Update Through RS-232C Port
    ●Desktop, Ceiling Mount, Wall Mount
    ●Compatible with Most Kinds of Video Terminal in the Market

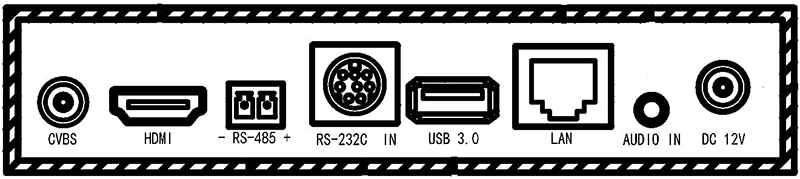

    Backboard object


    Parameter

    Mode
    PV603U2
    Optical Parameter
    Sensor
     1/2.8"  inch Exmore CMOS
    Effective Pixels
    16:9  2.1 Megapixels
    Video Format
    USB2.0: 1080p30,720p30,
    640X480p30, 320X240p30,

    Optical Lens
    3X optical zoom lens3X digital zoom lens f=2.5mm~8mm
    Horizontal View Angle
    100°(W)33°(T)
    0.1Lux
    White Balance
    Auto/indoor/outdoor/Manual
    Focus
    Auto/Manual
    Noise-Signal Ratio
    >50dB
    Input/Output interface
    HD video interface
    USB 2.0
    Control signal interface
    8 mini DIN(RS232)/3.81 pin(RS485)
    Control signal format
    Start bit:1bit、data bit:8bit、stop bit:1bit、baud rate:9600/4800/2400bps
    Power interface
    HEC3800 power socket
    Support operating system
    Windows 7, Windows 10,  Linux
    USB protocol
    UVC1.1
    Encoding
    MPEG/YUY2
    USB interface PTZ control
    USB interface PTZ control
    Mechanical Parameter
    Pan-Tilt
    Horizontal Angle: ±170°(Maximum speed: 100° /s);
    Vertical Angle: -30° to +90°(Maximum speed: 60° /s)
    Preset accuracy:0.1°
    No. of Preset Positions:255
    Colour
    Steel gray
    Power adapter
    AC110V-AC220V switch DC12V/2A
    Input voltage
    DC12V(DC11.5-DC12.5V)
    Power dissipation
    15W(Max)
    -10℃~+60℃
    Working  Temperature
    0℃~45℃
    Dimensions
    (Length)155 × (Width)176 x (Height)170mm
    Weight(Net weight)
    2.5KG(1.3KG)
    Environment
    Indoor
